Tee Union

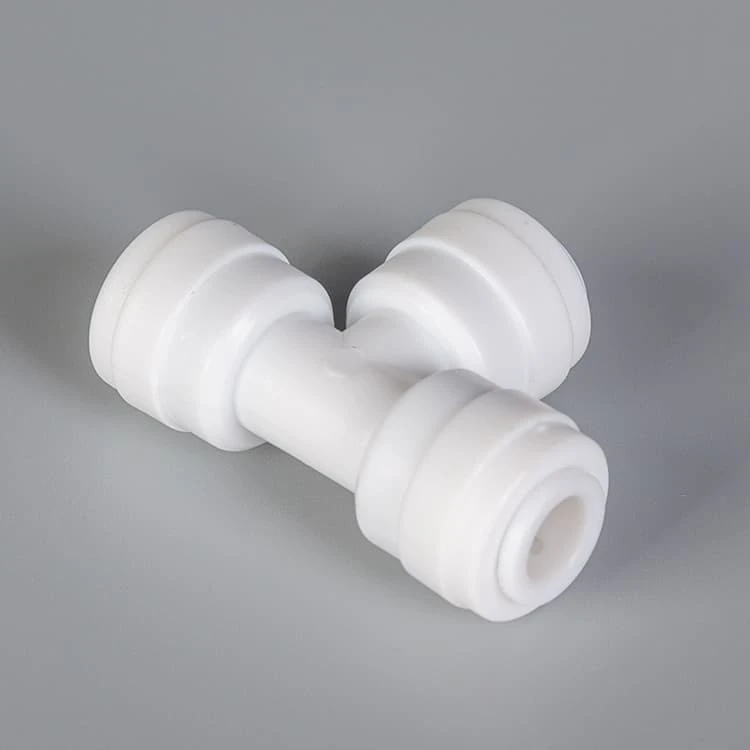

PPE tee union yog tus qauv T-puab thawb- hauv kev sib cais haum. Peb universal thawb-hauv cov chaw nres nkoj paub ib qho-hauv- ob- tawm dej sib cais, nrog ua tiav qhov sib npaug & txo qhov ntau thiab tsawg rau RO thiab cov kav dej hauv tsev.
- Khoom Taw qhia
Yuyao Eshiong Yeeb Nkab Fittings Technologies Co., Ltd. Thov so assured mus ua lag luam wholesale bulk check tee union los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw. Tsis tas li ntawd, cov qauv dawb yog muaj.
Lub koom haum tee nta peb lub laub- nyob rau hauv cov chaw nres nkoj rau kev sib txuas ntawm lub raj thiab kev sib xyaw ua ke ib qho -daim T- qauv qauv ua los ntawm cov zaub mov- qib POM.
Nws txuas cov kav dej tsis muaj cov cuab yeej los faib cov dej ib leeg rau hauv ob ceg, txhim kho cov kav dej kom zoo rau ntau yam khoom siv kho dej hauv tsev nrog ntau qhov sib npaug thiab txo qhov kev xaiv qhov ntev kom haum rau sib xyaw - txoj kab uas hla cov yeeb nkab sib txuam xav tau.
Kev Ua Haujlwm Parameter
|
Khoom siv |
Tube Compatibility |
O-Nplhaib |
Kua dej |
Nruam siab |
Ua Haujlwm Siab |
Kub |
|
POM |
Haum PE hose |
NBR |
Dej |
Ntau dua lossis sib npaug li 2.76MPa |
0.1-1.2MPa |
Tsawg dua lossis sib npaug li 40 degree |
Nco tseg:
1.Qhov ntsuas kub yog 0-25 degree;
2. Tsis haum rau corrosive media xws li muaj zog acid thiab alkali.
Khoom Dimensions:PPE Tee Union
(Qhov ntau thiab tsawg yog muaj raws li qhov kev thov. Thov hu rau peb rau cov lus qhia tshwj xeeb uas tsis tau teev tseg ntawm no.)
|
Hom |
Qauv |
Hom |
Qauv |
||||
|
Tube (Inch) |
Tube (Inch) |
Tube |
Tube (mm) |
Tube (mm) |
Tube (mm) |
||
|
PPE 040404 |
1/4 |
1/4 |
1/4 |
PPE 06-06-06 |
06 |
06 |
06 |
|
PPE 040604 |
1/4 |
3/8 |
1/4 |
PPE 06-10-06 |
06 |
10 |
06 |
|
PEB 050505 |
5/16 |
5/16 |
5/16 |
PPE 08-08-08 |
08 |
08 |
08 |
|
PEB 050405 |
5/16 |
1/4 |
5/16 |
PEB 08-06-08 |
08 |
06 |
08 |
|
PEB 050404 |
5/16 |
1/4 |
1/4 |
PPE 08-06-06 |
08 |
06 |
06 |
|
PEB 050504 |
5/16 |
5/16 |
1/4 |
PPE 08-08-06 |
08 |
08 |
06 |
|
PPE 060606 |
3/8 |
3/8 |
3/8 |
PPE 10-10-10 |
10 |
10 |
10 |
|
PPE 060406 |
3/8 |
1/4 |
3/8 |
PPE 10-06-10 |
10 |
06 |
10 |
|
PPE 060404 |
3/8 |
1/4 |
1/4 |
PPE 10-06-06 |
10 |
06 |
06 |
|
PPE 060604 |
1/4 |
3/8 |
3/8 |
PPE 10-10-06 |
10 |
10 |
06 |
|
PPE 12-12-12 |
12 |
12 |
12 |
||||
|
PPE 08-12-08 |
08 |
12 |
08 |
||||
|
PPE 12-08-12 |
12 |
08 |
12 |
||||
Ntim:
1.PE hnab thiab muab ob npaug rau corrugated thawv ntim;
2.Carton loj: 35 * 25 * 35cm;
3.Packaging kom muaj nuj nqis sib txawv ntawm cov qauv. Thov xyuas nrog peb cov neeg siv khoom.
Cov yam ntxwv tseem ceeb
Integral T-zoo li tus tsim nrog peb lub laub tag nrho- nyob rau hauv qhov (socket) rau PE tubing.
Cov cuab yeej -plug ceev dawb rau kev txhim kho sai thiab yooj yim tom qab tu.
Muaj ntau sib npaug & txo qhov ntau thiab tsawg kom phim - txoj kab nruab nrab txoj kab sib txuas.
Compact lub cev kom txuag tau qhov chaw teeb tsa hauv chav dej purifier.
Kev tu thiab tu txhua hnub
- Txiav tubing kom huv si thiab deburr ua ntej tso.
- Tighten cov xov me me; zam dhau- nruj.
- Tshawb xyuas cov dej xau tom qab hloov siab / kub.
- Tsuas yog siv cov kua uas tsis yog -corrosive.
- Thaum disassembling, nias lub nplhaib sib npaug thiab rub lub raj ncaj qha tawm.
